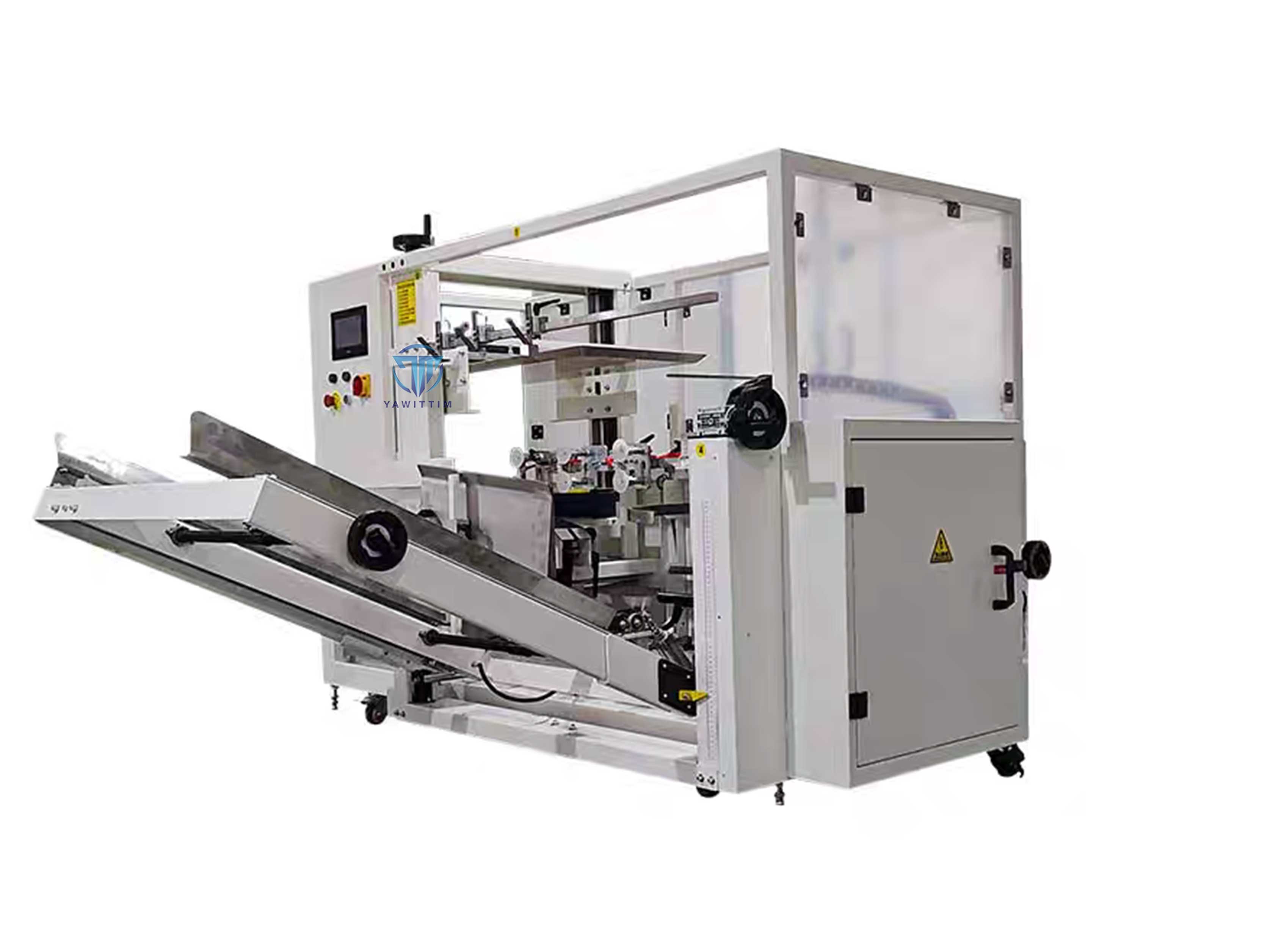

Corrugated Carton Box Manufacturing Machine 220V / 50HZ
| Place of Origin | China |
|---|---|
| Brand Name | MITTIWAY |
| Model Number | MTW-K40 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | 2.2KW Carton Box Manufacturing Machine,Carton Box Manufacturing Machine 220V |
||
|---|---|---|---|
Product Description
Product Description:
MTW-K40 is a carton forming and bottom sealing packing machine which control by PLC and operate from HIMI system. The machine is very efficiency and convenient with the packing speed of 10~12 cartons per min. The cardboard can be loaded without stopping the machine. Carton packing size is adjusted manually. It is easy to do the operation and maintainance on the machine.
Configuration:
1. Bearing: China HRB,good quality, the famous brand of world
2. Electricity box:Special design, move freely
3. Double insurance: China CHINT, greater security for install two insurances in air switch and safety switch
4. Vacuum generator: CHELIC
5. Cylinder: AIRTAC, accurately
6. PLC: Panasonic/Siemens
7. Sensor: Germany Sick
8. Motor: Taiwan GPG, high quality, low failure rate
9. Electric: French Schneider, high quality parts
10. Relay: Japan IDEC
11. Tape head can be exchanged from 2 inch to 3 inch.
Technical Parameters:
| Model | MTW-K40 | Carbon steel |
| Production speed | 10~12ctns/min | |
| Power supply | 110V/220V,1∮,50-60HZ 200W | |
| Carton size(mm) | L250-450xW150-400xH100-400 | |
| Air compressing | 6kg/cm³ | |
| Air comsumption | 450NL/MIN | |
| Machine dimension | L2000xW1900xH1450mm | |
| Machine weight | 450KG | |
| Adhesive tape width | 48/60/75MM |
Support and Services:
Carton Erector Machines provide technical support and services to ensure optimal performance of your machines. Our technical support team is available 24/7 to answer any questions you may have. We also offer on-site maintenance and repair services to ensure the longevity of your machines. In addition, we provide a variety of spare parts for your machines to ensure that they operate at peak performance.
Packing and Shipping:
Packaging and Shipping for Carton Erector Machine
The Carton Erector Machine is packaged and shipped in the following manner:
- The machine is placed in a crate with foam padding.
- The crate is then taped closed.
- The crate is then secured with straps.
- The crate is then placed in a shipping container.
- The shipping container is then sealed with tape and labeled.
- The container is then loaded onto a truck or cargo plane for delivery.
FAQ:
-
Q1: Are you a factory ortrading company?
A1: We are factory with110vorkers in total.
Q2:What is your hot items?
A2: Our main products are tray erectors,tray former machine,bag inserter machine,bag folder
machine,bag sealer machine,carton erector,carton sealer
Q3:How about the Shipping Method?
A3: Our packing machines are mainly shipped by sea, or land transportation if it is next to
China ,and air shipments are all workable if the customer can afford the air freight. In one
words, we could do any shipments you wanted.
Q4:How about the delivery date?
A4: In General, the delivery date will be 35-65 working days for normal buy quantity. But if
bigger
order, please check with us further.
Q5:How about the label and the logo?
A5: Customize label and logo is workable.
Q6: How about the MOQ?
A6: 1set of machine.
Q7: What is the warranty?
A7:All our goods are 1 years warranty ,except the consuming parts.
