Powerful Box Carton Erector Machine 2.2KW stainless steel material
| Place of Origin | China |
|---|---|
| Brand Name | MITTIWAY |
| Model Number | MTW-K40J |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | Powerful Carton Erector Machine,Carton Erector Machine 2.2KW,Box Erector Machine |
||
|---|---|---|---|
Product Description
Product Description

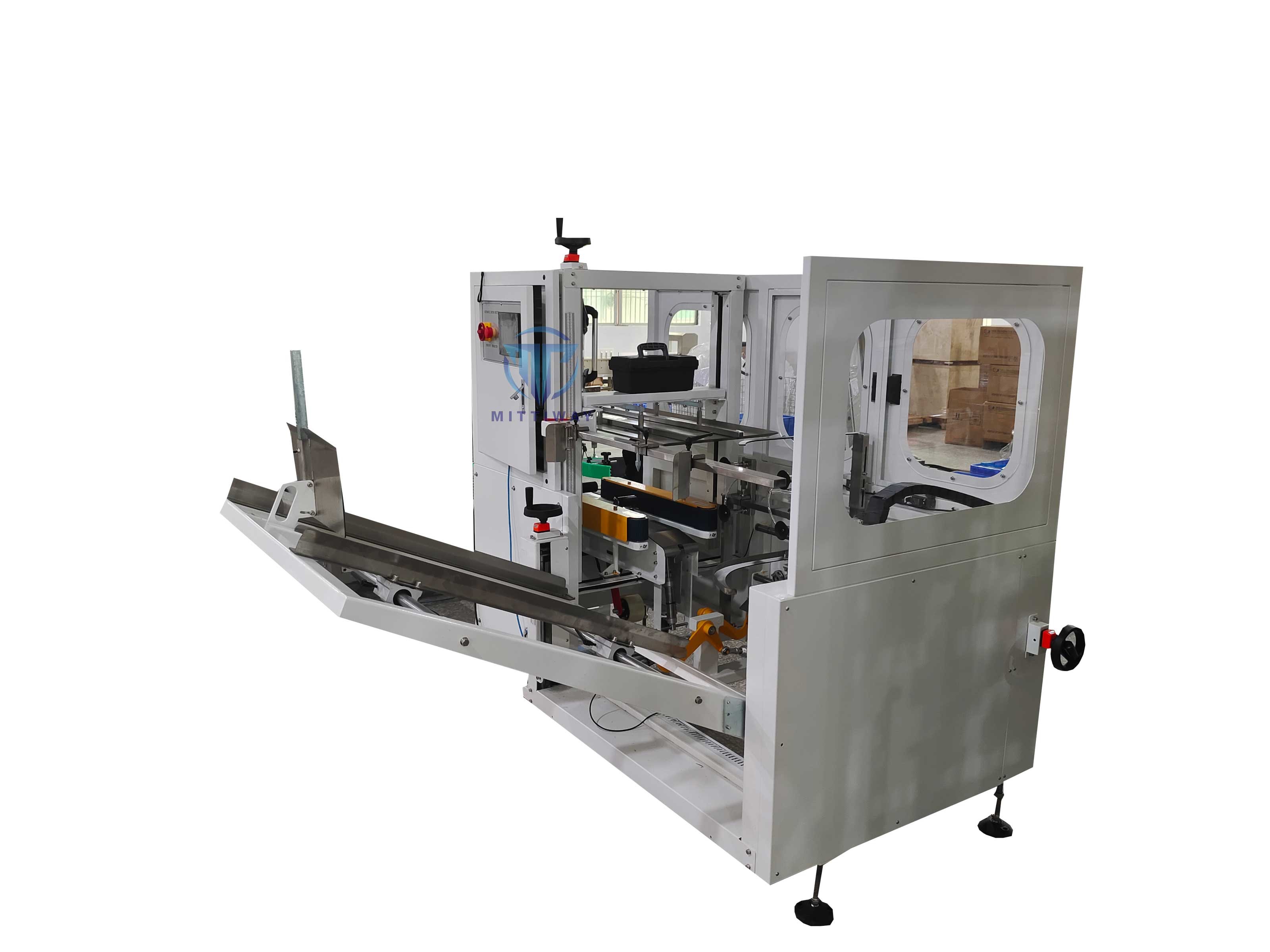

MTW-K40J is a carton forming and bottom sealing packing machine which control by PLC and operate from HIMI system. Insteadof the tape sealing ,the machine is with the nordson glue machine,which will be more environmental protection packing solution. It is very efficiency and convenient. Carton board can be loaded without stopping the machine.Carton packing size can be adjust manually. Easy to operate and maintain.
Configuration:
1. Bearing: China HRB,good quality, the famous brand of world
2. Electricity box:Special design, move freely
3. Double insurance: China CHINT, greater security for install two insurances in air switch and safety switch
4. Vacuum generator: CHELIC
5. Cylinder: AIRTAC, accurately
6. PLC: Panasonic/Siemens
7. Sensor: Germany Sick
8. Motor: Taiwan GPG, high quality, low failure rate
9. Electric: French Schneider, high quality parts
10. Relay: Japan IDEC
11. Tape head can be exchanged from 2 inch to 3 inch
Technical Parameters:
| Model | MTW-K40J |
| Production speed | 10~12ctns/min |
| Power supply | 110V/220V,1∮,50-60HZ 200W |
| Carton size(mm) | L250-450xW150-400xH100-400 |
| Air compressing | 6kg/cm³ |
| Air comsumption | 450NL/MIN |
| Machine dimension | L1600xW1800xH1350mm |
| Machine weight | 450KG |
| Adhesive tape width | 48/60/75MM |
Option:
1. Can use International famous brand parts.
2. Can choose color
3. Can be added anti-explosion function.
4. Can be added full protective cover.
5. Can be added safety switch, when the protective cover is opening, the machine will stop
6. Stock chest can be lengthened or change to pneumatic horizontal pushing-type
7. In-feed way can be opposite.
8. 110V, 220V, 380V
9. Plug type selective.
10. Alarm for tape lack and break
11. Stainless steel
12. Can erect cube carton
13. Four belts driven for high carton
14. Erecting sizes: height: 80-1200mm; width: 100-400mm; length: 100-850mm.
15. Customized table height.

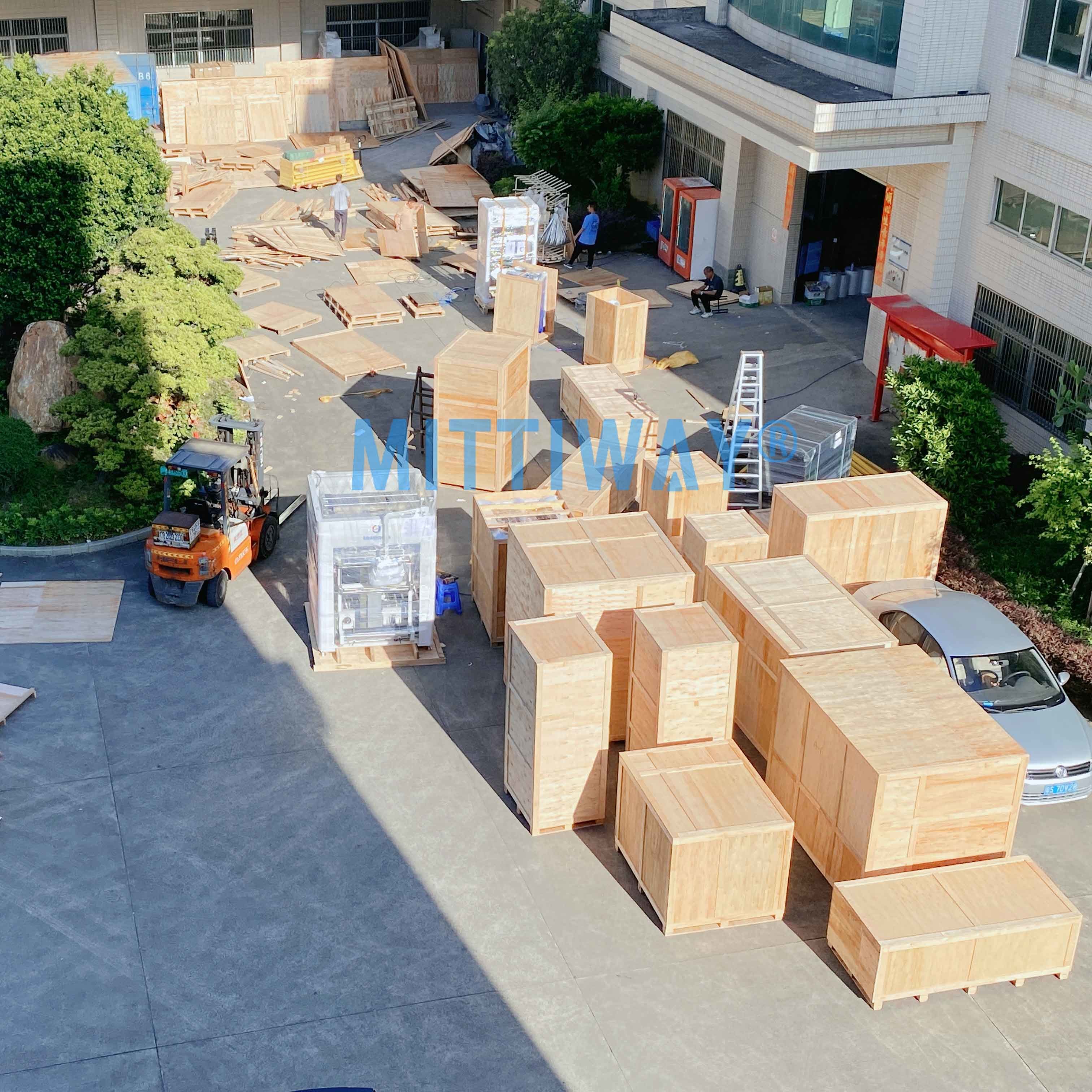

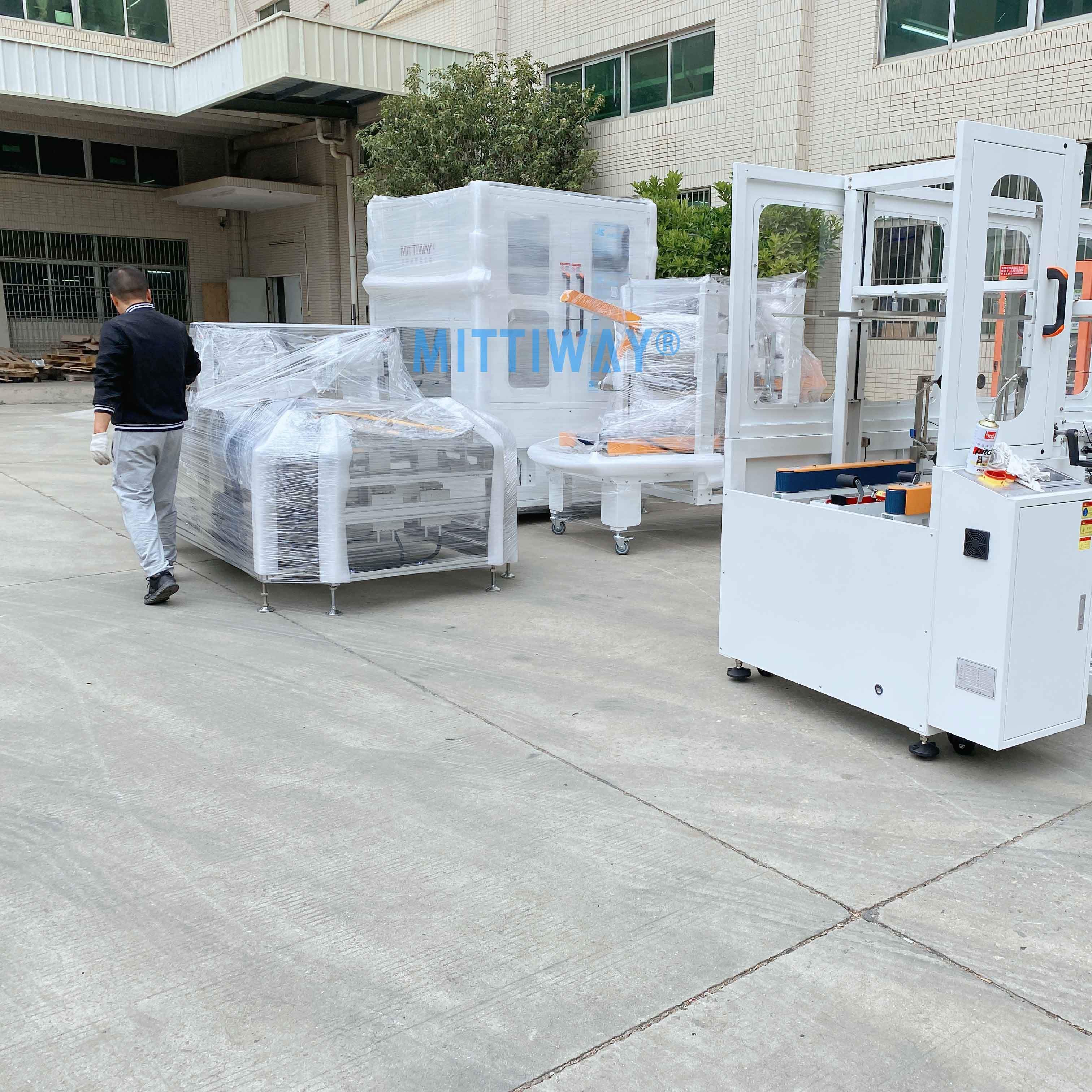

Packing and Shipping:
Carton Erector Machine Packaging and Shipping
The Carton Erector Machine can be securely packaged and shipped with the following steps:
- Carefully wrap the machine in plastic and secure with tape.
- Place the machine on a pallet, and secure with shrink wrap.
- Secure the pallet with straps and/or shrink wrap.
- Cover the pallet with a cardboard box.
- Label the box with the destination address and other relevant information.
- Ship the machine using a reliable carrier.
FAQ:
Q1: Are you a factory ortrading company?
A1: We are factory with110vorkers in total.
Q2:What is your hot items?
A2: Our main products are tray erectors,tray former machine,bag inserter machine,bag folder
machine,bag sealer machine,carton erector,carton sealer
Q3:How about the Shipping Method?
A3: Our packing machines are mainly shipped by sea, or land transportation if it is next to
China ,and air shipments are all workable if the customer can afford the air freight. In one
words, we could do any shipments you wanted.
Q4:How about the delivery date?
A4: In General, the delivery date will be 35-65 working days for normal buy quantity. But if
bigger
order, please check with us further.
Q5:How about the label and the logo?
A5: Customize label and logo is workable.
Q6: How about the MOQ?
A6: 1set of machine.
Q7: What is the warranty?
A7:All our goods are 1 years warranty ,except the consuming parts.
