Precise Semi Automatic Carton Erector Machine Stainless Steel
| Place of Origin | China |
|---|---|
| Brand Name | MITTIWAY |
| Model Number | MTW-K40S |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Highlight | Precise Carton Erector Machine,Carton Erector Machine Stainless Steel,Semi Automatic Carton Erector |
||
|---|---|---|---|
Product Description
Product Description:

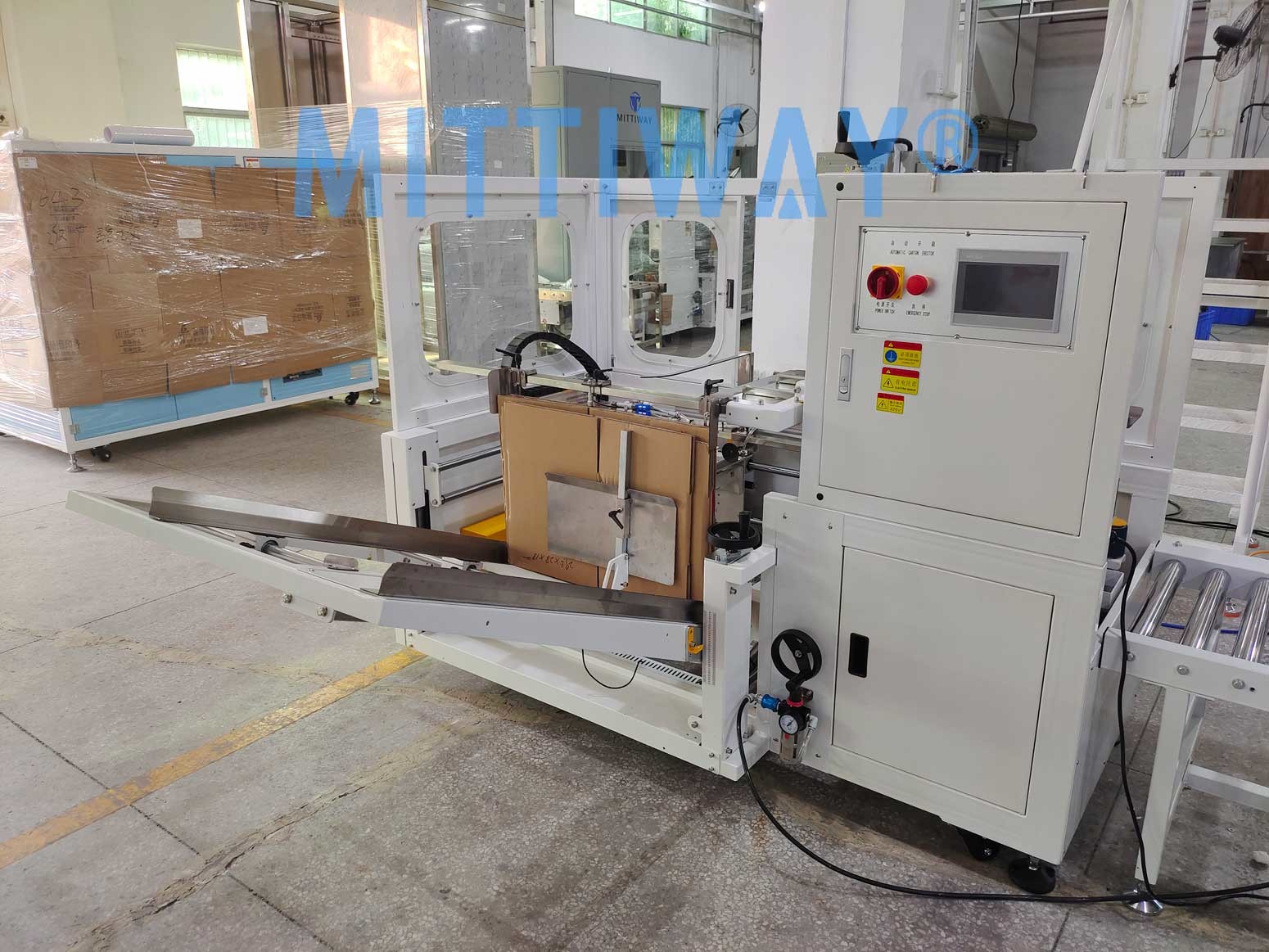

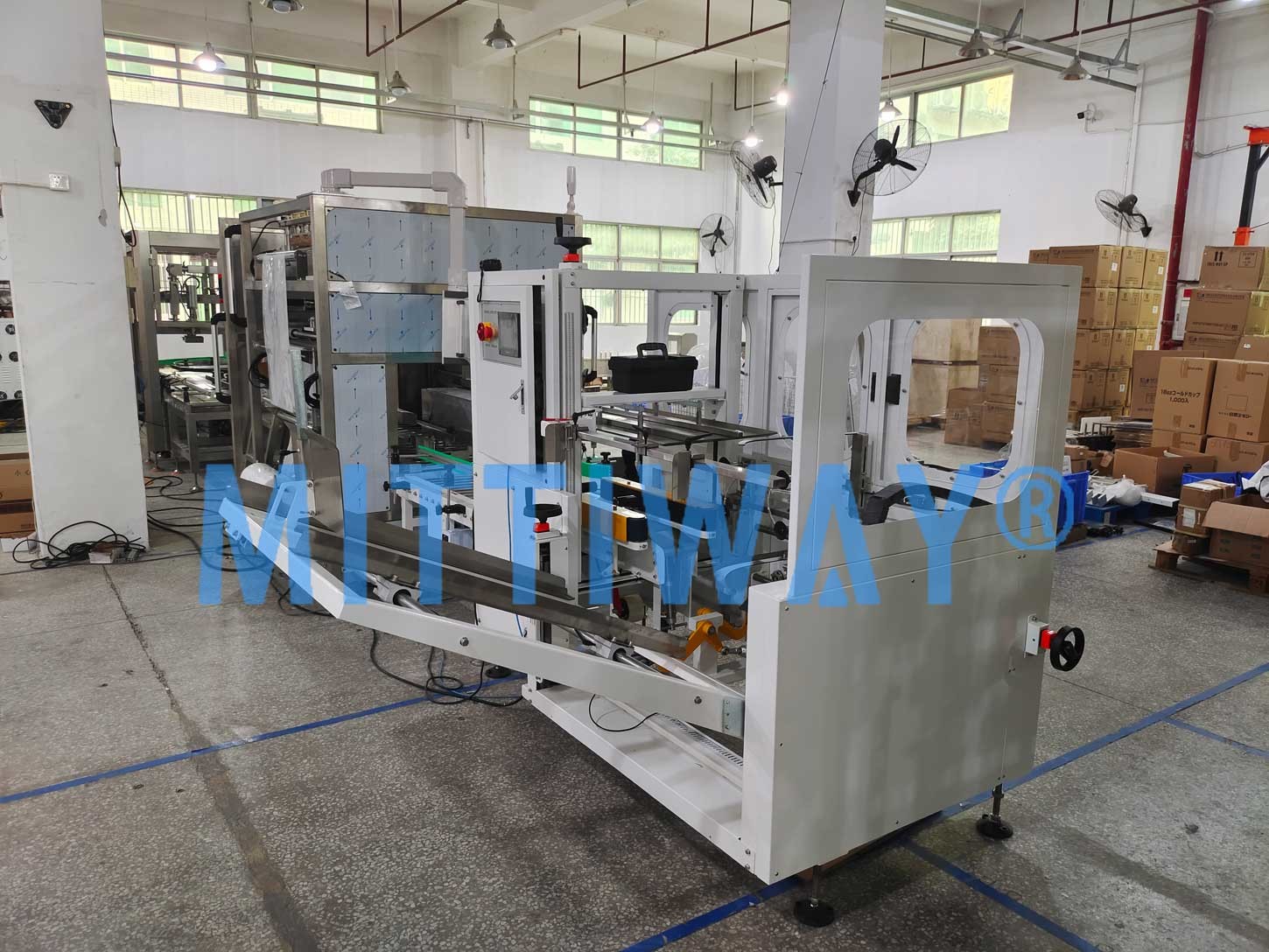

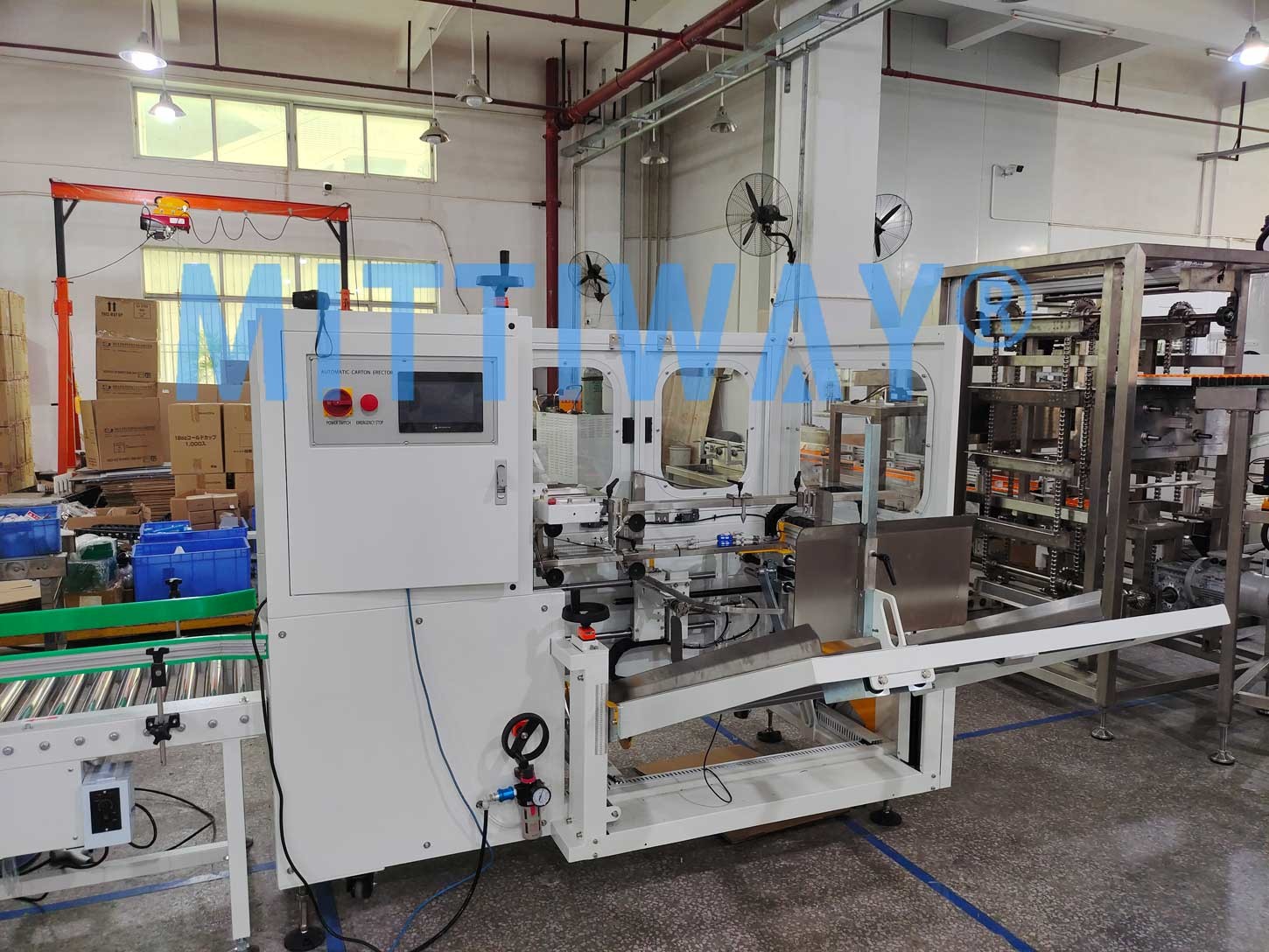

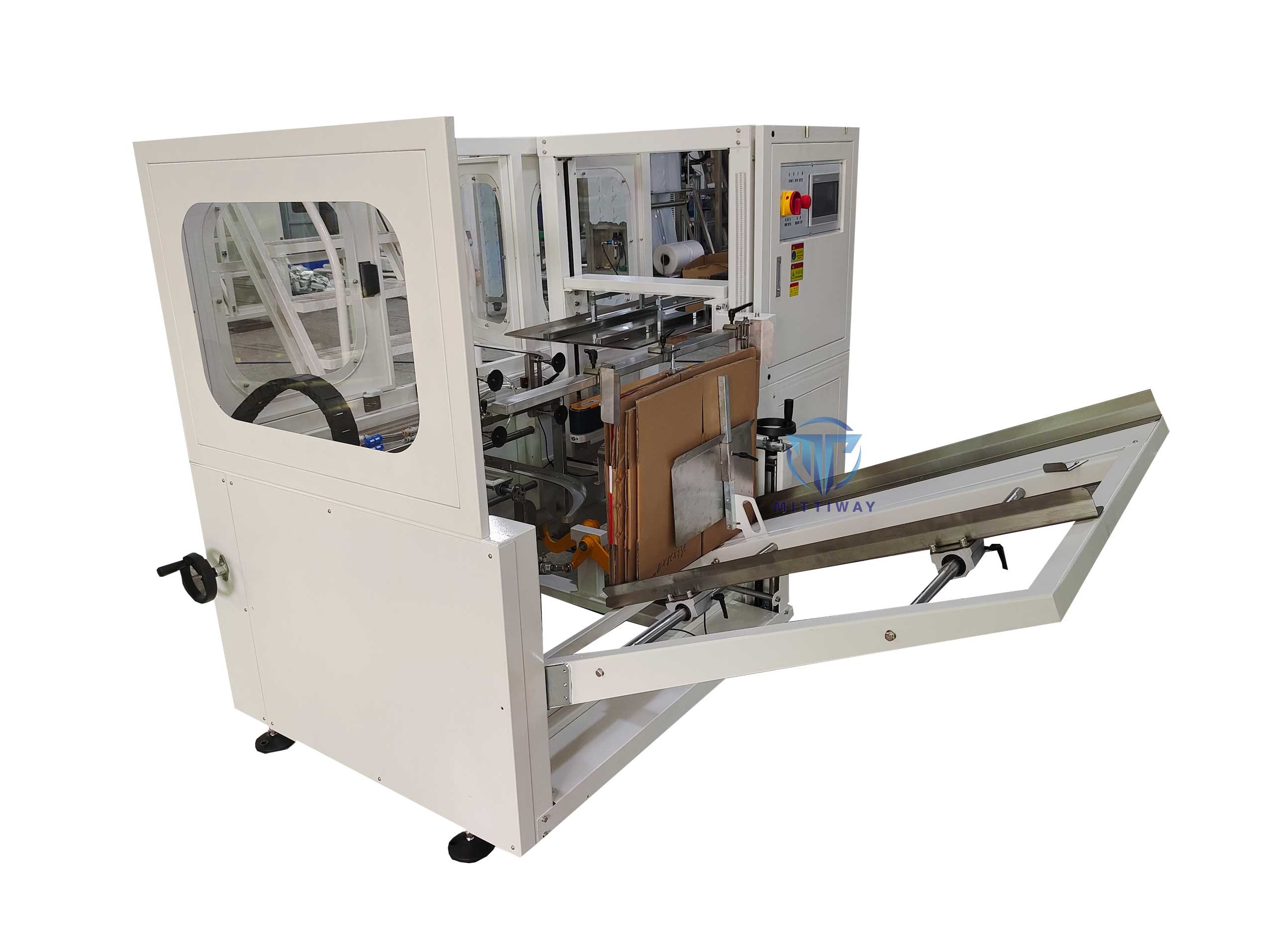

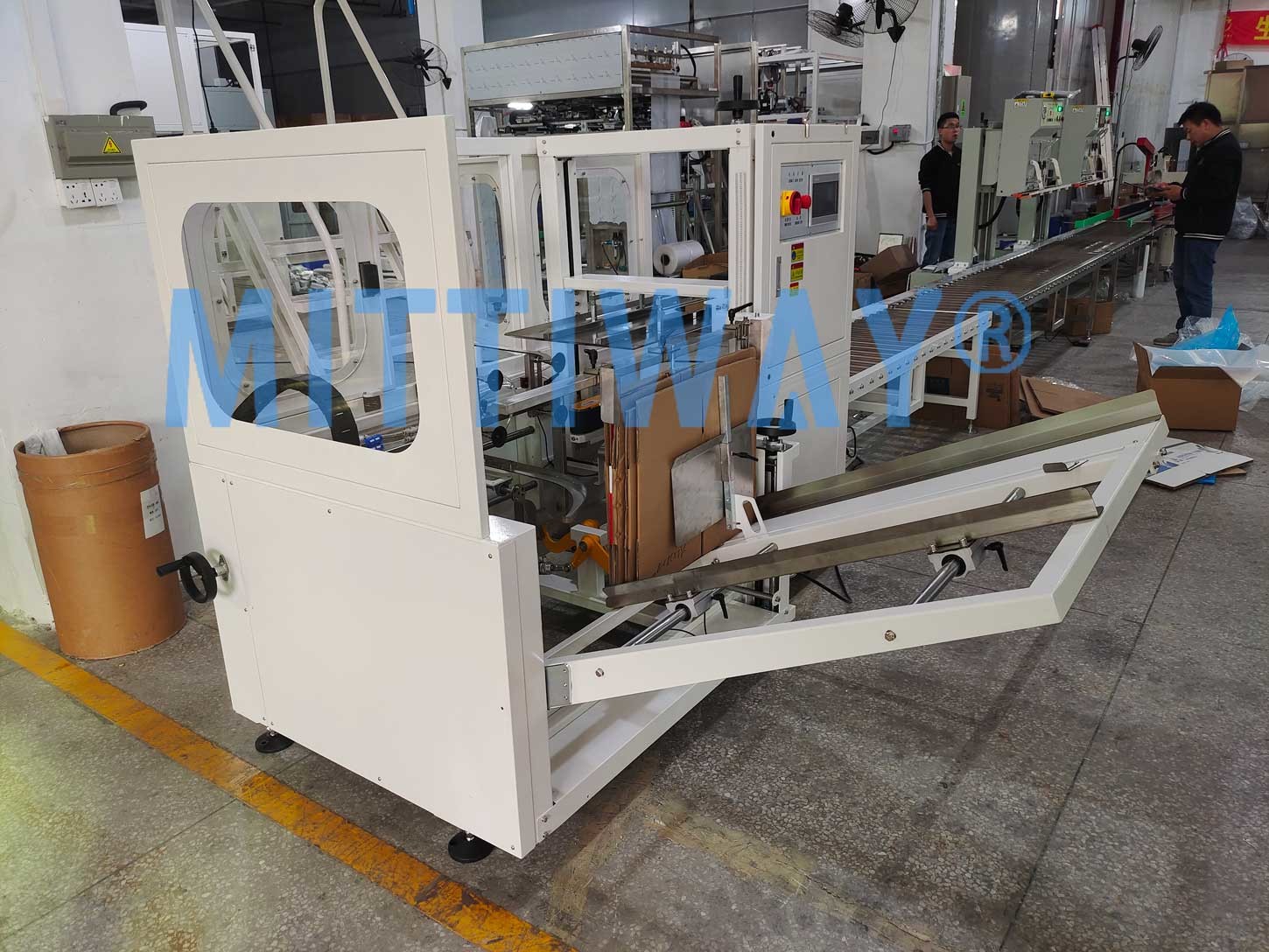

MTW-K40S is a carton forming and bottom sealing packing machine which control by PLC and operate from HIMI system. The machine is very efficiency and convenient with the packing speed of 10~12 cartons per min. The cardboard can be loaded without stopping the machine. Carton packing size is adjusted manually. It is easy to do the operation and maintainance on the machine.
Configuration:
1. Bearing: China HRB,good quality, the famous brand of world
2. Electricity box:Special design, move freely
3. Double insurance: China CHINT, greater security for install two insurances in air switch and safety switch
4. Vacuum generator: CHELIC
5. Cylinder: AIRTAC, accurately
6. PLC: Panasonic/Siemens
7. Sensor: Germany Sick
8. Motor: Taiwan GPG, high quality, low failure rate
9. Electric: French Schneider, high quality parts
10. Relay: Japan IDEC
11. Tape head can be exchanged from 2 inch to 3 inch.
Technical Parameters:
| Model | MTW-K40S | Stainless steel |
| Production speed | 10~12ctns/min | |
| Power supply | 110V/220V,1∮,50-60HZ 200W | |
| Carton size(mm) | L250-450xW150-400xH100-400 | |
| Air compressing | 6kg/cm³ | |
| Air comsumption | 450NL/MIN | |
| Machine dimension | L2000xW1900xH1450mm | |
| Machine weight | 450KG | |
| Adhesive tape width | 48/60/75MM |
Customization:
Carton Erector Machine
Brand Name: MITTIWAY
Model Number: MTW
Place of Origin: China
Weight: 1200KG
Warranty: One Year
Type: Automatic
Power Consumption: 2.2KW
Control System: PLC
MITTIWAY's Carton Erector Machine is designed to be the perfect solution for your Carton Box Manufacturing needs. The MTW model Carton Folding Gluing Machine is an automatic machine which has a weight of 1200KG and a power consumption of 2.2KW. It is equipped with a PLC control system, offering precise and accurate speed control. The machine also comes with a one-year warranty.
Support and Services:
Carton Erector Machine Technical Support and Service
Our company offers technical support and service for the Carton Erector Machine. Our team of skilled technicians and engineers are available to provide assistance with installation, operation, and maintenance of the machine. We also offer troubleshooting and repair services in the event of a malfunction or breakdown. Our team is dedicated to providing a reliable and efficient service to ensure that your machine is running correctly and efficiently.
If you have any questions or require any assistance, please do not hesitate to contact us. We are always available to help you with any inquiries you may have.
Packing and Shipping:

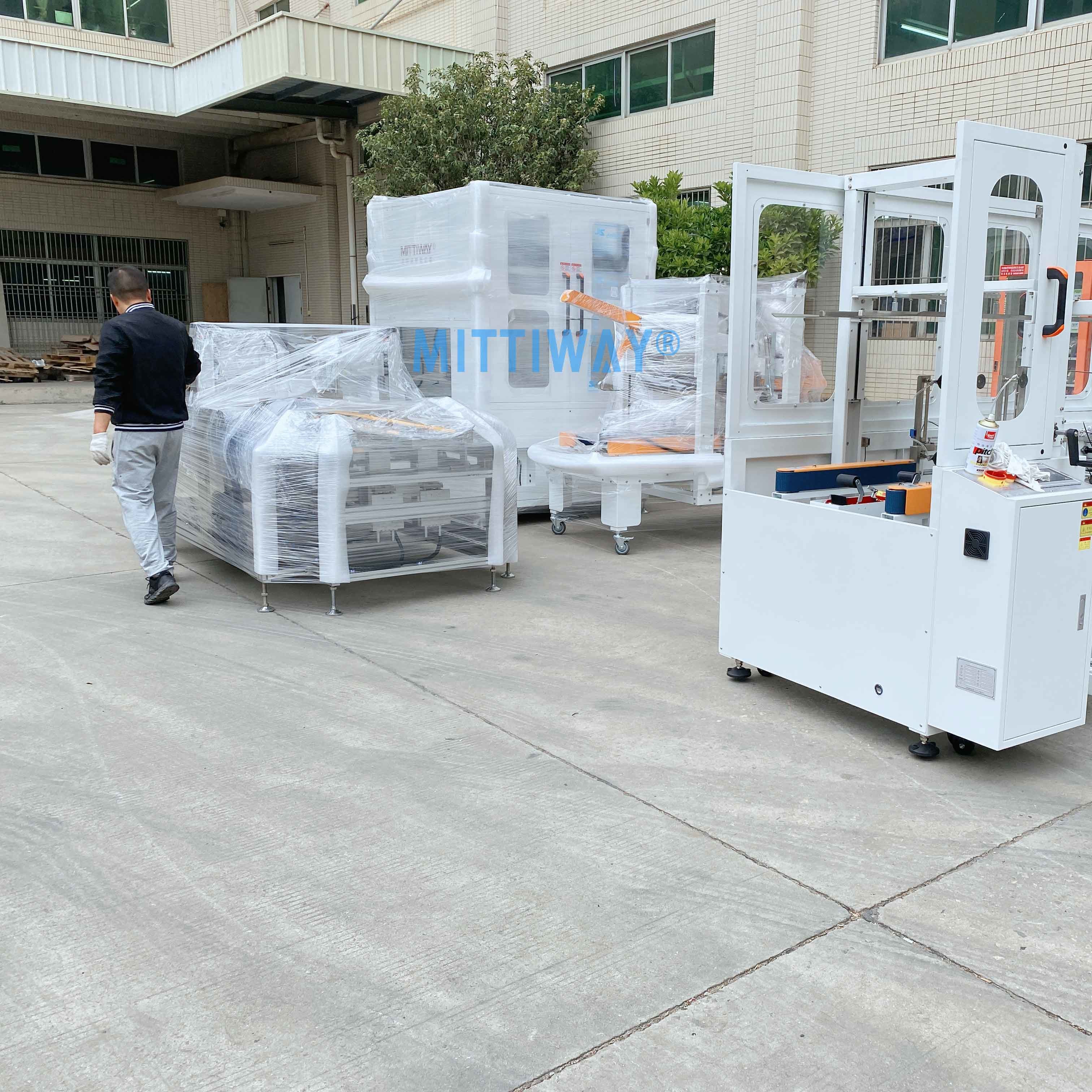

The Carton Erector Machine will be shipped in a secure wooden crate. Each crate will feature customized foam inserts to protect the machine during shipping. Once the crate is prepared, it will be securely sealed with pallet wrap and banded with steel bands to ensure the machine arrives safely.
The Carton Erector Machine will be shipped via a trusted carrier and tracked with a unique tracking code. We ensure the machine is shipped in a timely manner, and we are available to answer any questions about the tracking code or shipping process.
FAQ:
Q1: Are you a factory ortrading company?
A1: We are factory with110vorkers in total.
Q2:What is your hot items?
A2: Our main products are tray erectors,tray former machine,bag inserter machine,bag folder
machine,bag sealer machine,carton erector,carton sealer
Q3:How about the Shipping Method?
A3: Our packing machines are mainly shipped by sea, or land transportation if it is next to
China ,and air shipments are all workable if the customer can afford the air freight. In one
words, we could do any shipments you wanted.
Q4:How about the delivery date?
A4: In General, the delivery date will be 35-65 working days for normal buy quantity. But if
bigger
order, please check with us further.
Q5:How about the label and the logo?
A5: Customize label and logo is workable.
Q6: How about the MOQ?
A6: 1set of machine.
Q7: What is the warranty?
A7:All our goods are 1 years warranty ,except the consuming parts.
