Auto Coffee Bag Packaging Machine Powerful Food Packaging Sealing Machine
| Place of Origin | China |
|---|---|
| Brand Name | MITTIWAY |
| Model Number | MTW-TF50S |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Voltage | 220V/380V | Control System | PLC |
|---|---|---|---|
| Power | 220V/50HZ | Material | Stainless Steel |
| Packaging Type | Bag, Box, Tray | Type | Automatic |
| Highlight | Auto Coffee Bag Packaging Machine,Coffee Bag Packaging Machine Powerful,Powerful Food Packaging Sealing Machine |
||
Product Description
Product Description:

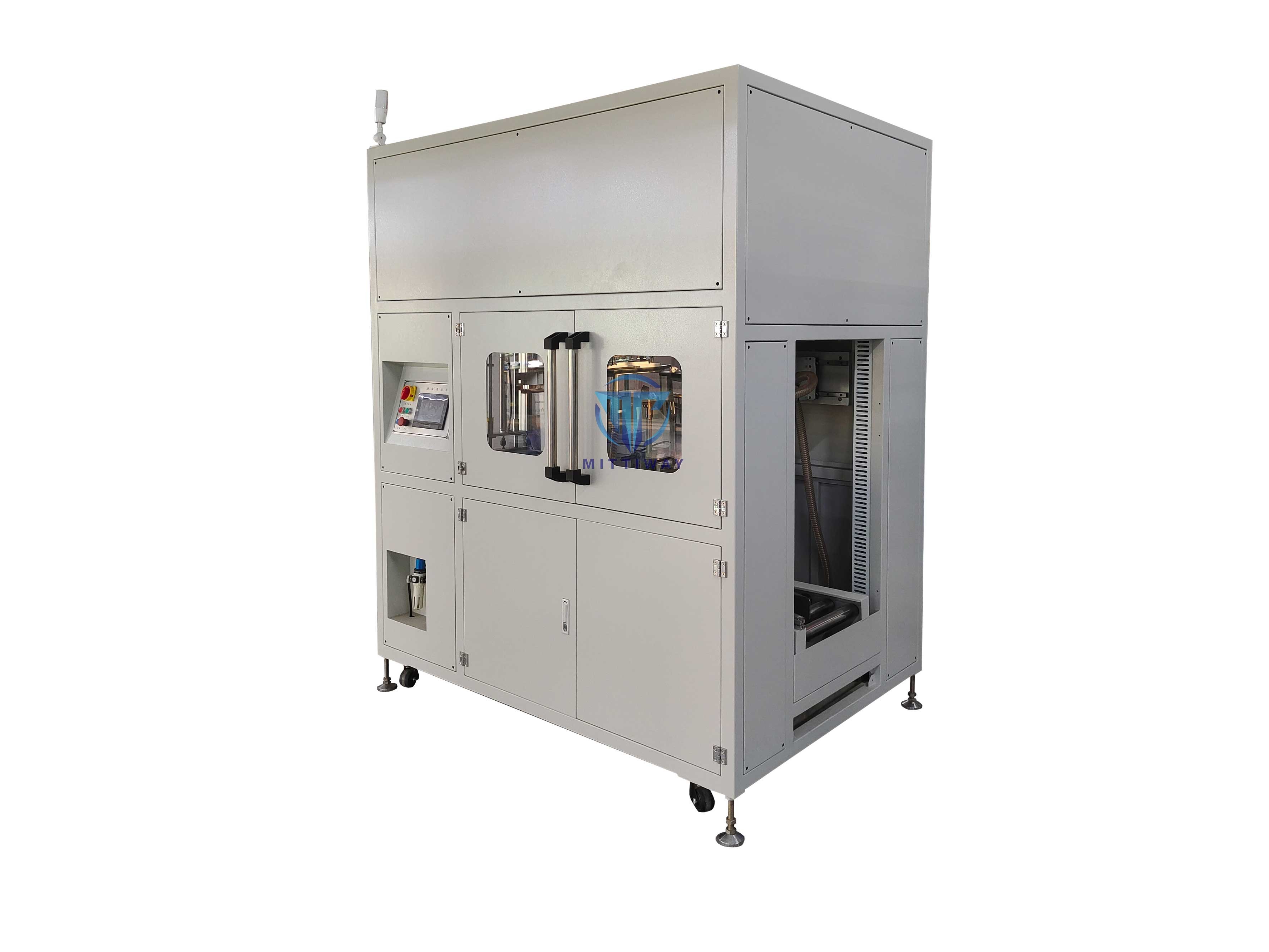

MTW-TF50S is an automatic bag decuffering and sealing pack machine ,which adopts M-type PE film as the main consuming material. It can close and seal the bag automatically into the carton.The machine has small-footprint and simple structure, which is easily operated and easy maintenance. It is widely applied on oil, flour and food industry. The packing is high efficient and good-looking for products.
Configuration:
1. PLC :Panasonic/Mitsubishi
2. Touch panel : Weiview
2. Sensor:German Sick
3. Intermediate Relay : Japan OMRON
4. Temperature Controller:OMRONC
5. Contactor: SCHNEIDER

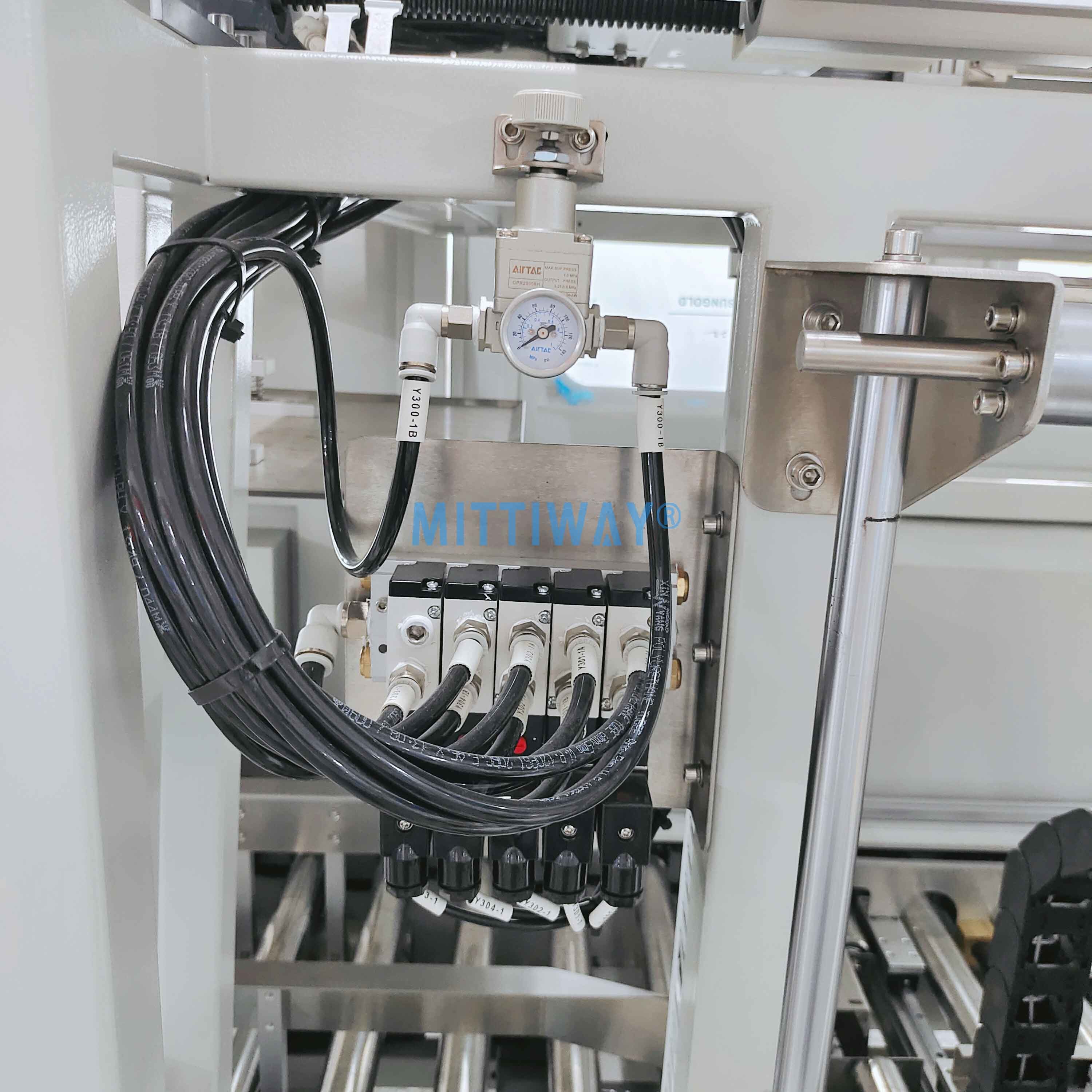

6. Pneumatic Parts: Airtac
7. Servo motor: Japan Panasonic/Mitsubishi
Technical Parameters:
| Model | MTW-TF50S | Stainless steel |
| Machine dimension | L2000W1700H2300mm | |
| Packing size | L:200~500mm W:200~400mm H:200~300mm | |
| Width of the film | 460~800mm (Sum the Length of the carton*2 +Width of the carton*2 +150mm) | |
| Thickness of film | 30/50/80/100 micron | |
| Packing speed | 4~5ctn/min | |
| Net weight | 1380kg | |
| Power | 5KW | |
| Power supply | 380V ,50/ 60Hz , 3Phase | |
| Air pressure | 8kg/cm³,0.6~0.8Mpa | |
| Max current | 10A |
Support and Services:
We offer technical support and service for our Food Packaging Machines. Our technical support team is available 24/7 to answer any questions or provide assistance with troubleshooting. We also offer regular maintenance and servicing of our machines to ensure that they are functioning properly and producing high quality output. We strive to offer the best customer service and technical support for our machines so that you can have a positive experience.
Packing and Shipping:
Packaging and Shipping
Food Packaging Machines are shipped in secure cardboard boxes and are wrapped with protective padding and shrink wrap. The machines are tested before they are packaged and shipped to ensure that they are working properly. They are also shipped with a user's manual that explains how to use and maintain them.
FAQ:
Q1: Are you a factory ortrading company?
A1: We are factory with110vorkers in total.
Q2:What is your hot items?
A2: Our main products are tray erectors,tray former machine,bag inserter machine,bag folder
machine,bag sealer machine,carton erector,carton sealer
Q3:How about the Shipping Method?
A3: Our packing machines are mainly shipped by sea, or land transportation if it is next to
China ,and air shipments are all workable if the customer can afford the air freight. In one
words, we could do any shipments you wanted.
Q4:How about the delivery date?
A4: In General, the delivery date will be 35-65 working days for normal buy quantity. But if
bigger
order, please check with us further.
Q5:How about the label and the logo?
A5: Customize label and logo is workable.
Q6: How about the MOQ?
A6: 1set of machine.
Q7: What is the warranty?
A7:All our goods are 1 years warranty ,except the consuming parts.
