Fast Automatic Plastic Bag Sealing Machine 220V / 50Hz Sealing Speed 0-15m/min
| Place of Origin | China |
|---|---|
| Brand Name | MITTIWAY |
| Model Number | MTW-TF50 |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Automatic Bag Sealing Machine | Packaging | Wooden Case |
|---|---|---|---|
| Material | Stainless Steel | Sealing Speed | 0-15m/min |
| Display | Touch Screen | Sealing Width | 6-12mm |
| Warranty | 1 Year | Control System | PLC |
| High Light | Automatic Plastic Bag Sealing Machine 220V,Automatic Plastic Bag Sealing Machine 50Hz |
||
Product Description
Product Description:

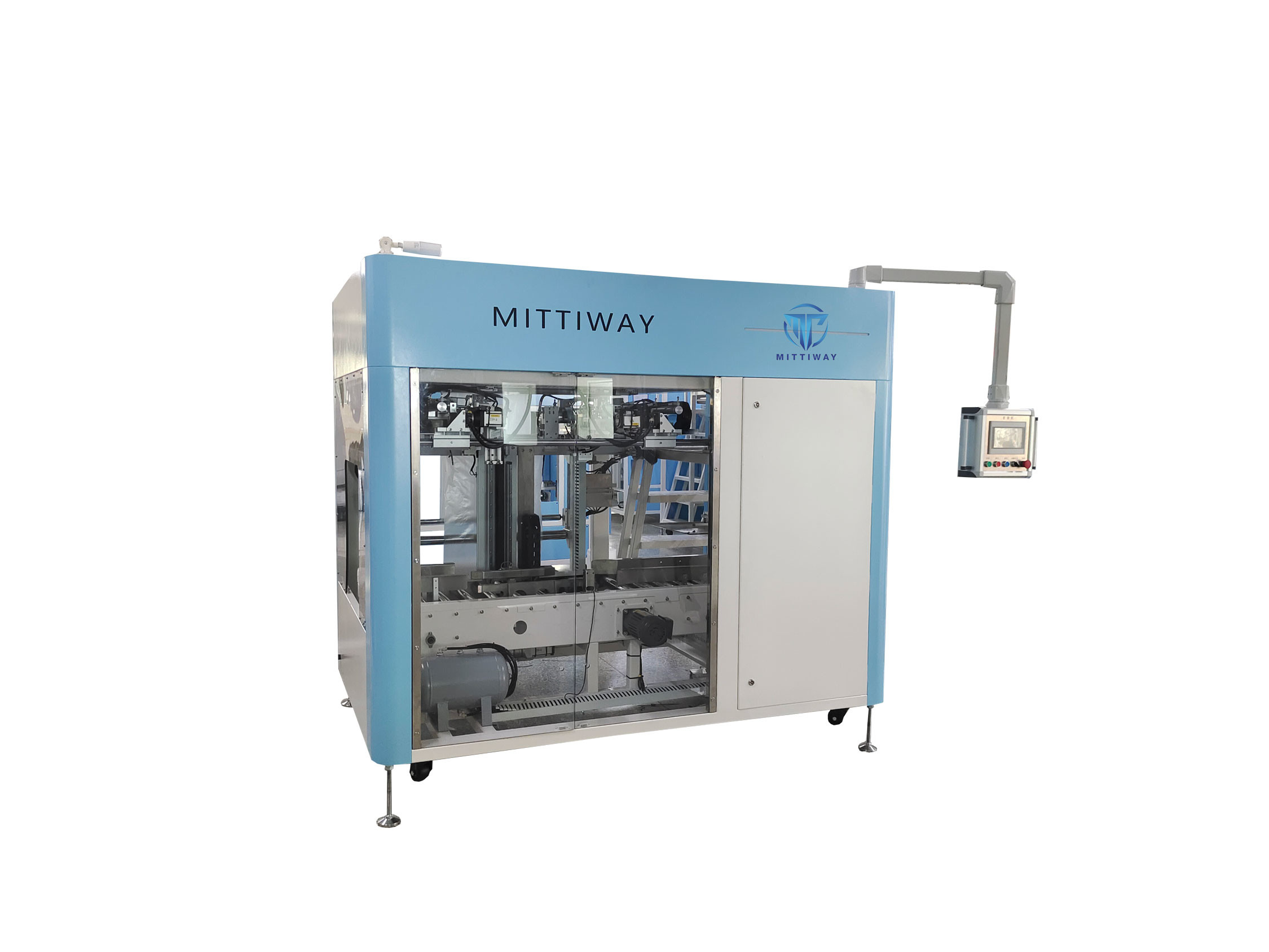

MTW-TF50 is an automatic bag decuffering and sealing pack machine ,which adopts M-type PE film as the main consuming material. It can close and seal the bag automatically into the carton.The machine has small-footprint and simple structure, which is easily operated and easy maintenance. It is widely applied on oil, flour and food industry. The packing is high efficient and good-looking for products.
Configuration:
1. PLC :Panasonic/Mitsubishi
2. Touch panel : Weiview
2. Sensor:German Sick
3. Intermediate Relay : Japan OMRON
4. Temperature Controller:OMRONC
5. Contactor: SCHNEIDER
6. Pneumatic Parts: Airtac

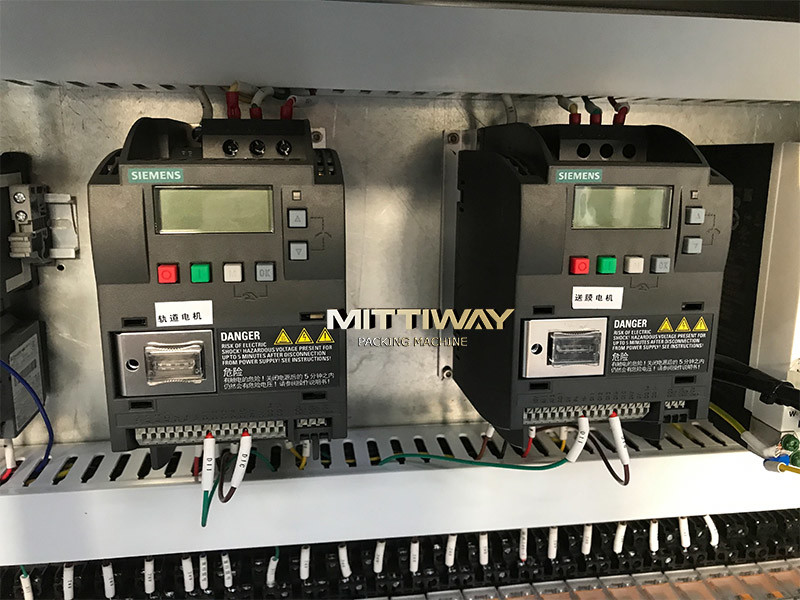

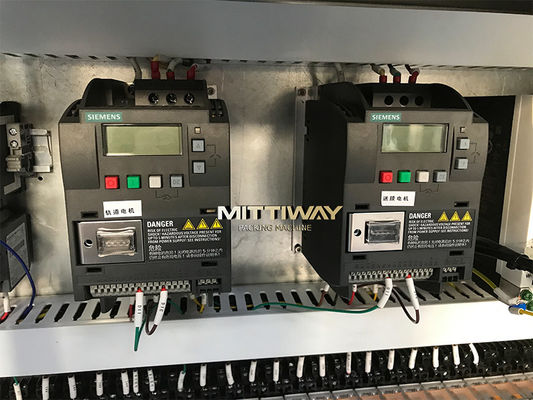

7. Servo motor: Japan Panasonic/Mitsubishi
Technical Parameters:
| Model | MTW-TF50 | carbon steel |
| Machine dimension | L2000W1700H2300mm | |
| Packing size | L:200~500mm W:200~400mm H:200~300mm | |
| Width of the film | 460~800mm (Sum the Length of the carton*2 +Width of the carton*2 +150mm) | |
| Thickness of film | 30/50/80/100 micron | |
| Packing speed | 4~5ctn/min | |
| Net weight | 1380kg | |
| Power | 5KW | |
| Power supply | 380V ,50/ 60Hz , 3Phase | |
| Air pressure | 8kg/cm³,0.6~0.8Mpa | |
| Max current | 10A |
Support and Services:
Automatic Bag Sealing Machine Support & Service
We offer technical support and service for our Automatic Bag Sealing Machine. Our goal is to ensure your Automatic Bag Sealing Machine stays running smoothly and is operating at peak efficiency. We provide professional advice and assistance with installation, troubleshooting, maintenance, and repair.
We offer an array of services, including:
- Installation assistance
- Troubleshooting
- Regular maintenance
- Repairs and replacement of components
- Software upgrades and updates
We also provide technical support through our website, telephone, email, and live chat. Our customer service team is available to answer your questions and provide assistance with any technical issues you may encounter.
If you ever need help with your Automatic Bag Sealing Machine, please don’t hesitate to contact us.
Packing and Shipping:
Packaging and Shipping
Automatic Bag Sealing Machines are securely packaged with at least 2" of foam padding to protect against shock, vibration, and impact during transit. It is then shipped in a corrugated box sealed with strong tape. All shipments will include a packing list with the contents of the box and a description of the product.
FAQ:
Q1: Are you a factory ortrading company?

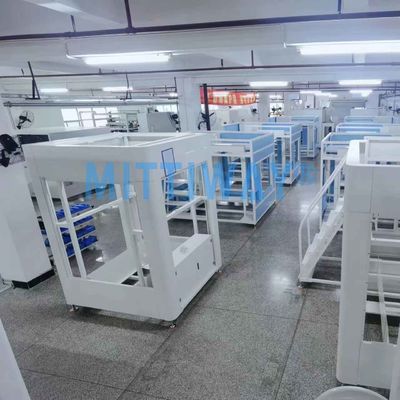

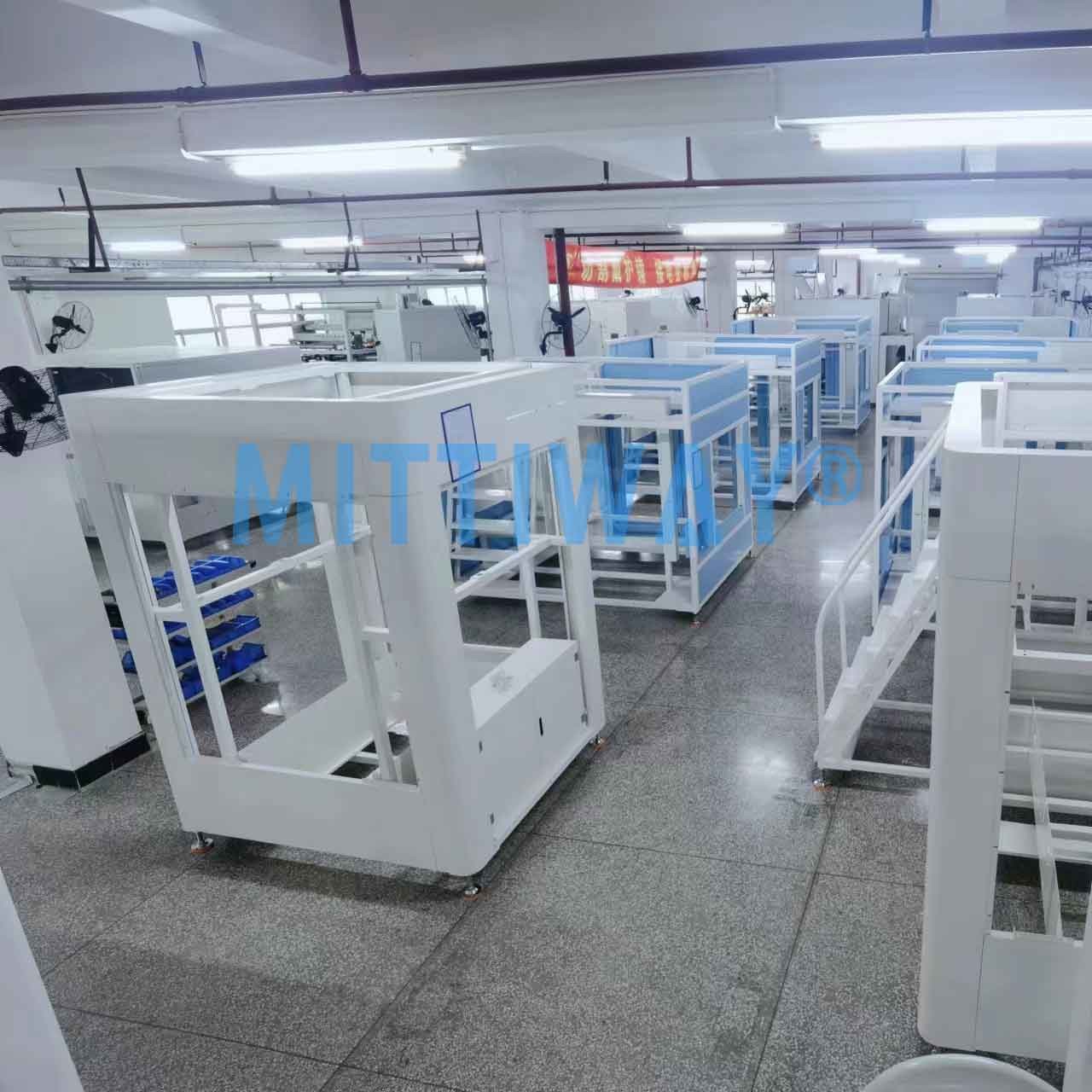

A1: We are factory with110vorkers in total.
Q2:What is your hot items?
A2: Our main products are tray erectors,tray former machine,bag inserter machine,bag folder
machine,bag sealer machine,carton erector,carton sealer
Q3:How about the Shipping Method?
A3: Our packing machines are mainly shipped by sea, or land transportation if it is next to
China ,and air shipments are all workable if the customer can afford the air freight. In one
words, we could do any shipments you wanted.
Q4:How about the delivery date?
A4: In General, the delivery date will be 35-65 working days for normal buy quantity. But if
bigger
order, please check with us further.
Q5:How about the label and the logo?
A5: Customize label and logo is workable.
Q6: How about the MOQ?
A6: 1set of machine.
Q7: What is the warranty?
A7:All our goods are 1 years warranty ,except the consuming parts.
