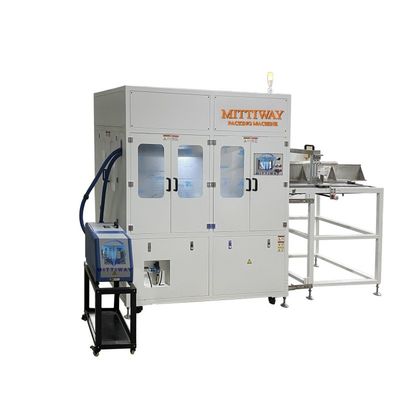

220V / 380V Automatic Tray Former High Speed Hot Melt Glue Tray Formers
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | Mittiway |
| Model Number | MTW-ZH25 |
| Price | $26,000.00/sets 1-2 sets |
| Packaging Details | poly wood case |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Showroom Location | None | Video Outgoing-inspection | Provided |
|---|---|---|---|
| Machinery Test Report | Provided | Warranty Of Core Components | 1 Year |
| Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure Vessel, Gear, Pump | Condition | New |
| Automatic Grade | Automatic | Usage | Other Forming Machine |
| Voltage | 220V/380V | Dimension(L*W*H) | L2000*W1800*H1800mm |
| Weight | 800-1200kg | Warranty | 1 Year |
| Key Selling Points | Automatic | Port | Shenzhen |
| Highlight | 220V Automatic Tray Former,380V Automatic Tray Former |
||
Product Description
Tray Formers Manufacturers High Speed Hot-Melt Glue Tray Former Traysformer Equipment
Company Profile
MITTIWAY PACKING MACHINE CO.,LTD is one of the professional leading packaging machine manufacturer in Guangdong province PRC. We specilized in the end of line packaging machine. Such as case erector ,case sealer, tray former,bag inserter, bag folder, bag sealer, automatic sealing &shrinking machine , and customized automatic case packer etc. We treat each engagement like it's our only one, and work hard to earn and keep your trust. We always think that our successes and our futures are tied together. Throughout the years, we have consistently delivered our clients with products and services with exceptional quality, value and measurable success. We have an organic, customizable mix of expertise that we offer at your service to fit your unique need. Our purpose is to offer you the best professional and qualified service.
Product Description
Here are the key features and functions of an automatic hot melt glue folding packaging machine tray forming machine:
-
Sheet Feeding: The machine accepts flat cardboard or corrugated board sheets, which can be pre-cut or supplied in roll form. The sheets are fed into the machine for further processing.
-
Tray Folding and Forming: The machine utilizes mechanical and/or pneumatic mechanisms to fold and form the sheets into the desired tray shape. It employs folding bars, guides, or molds to accurately fold and shape the trays based on the specific design and dimensions.
-
Hot Melt Gluing: The automatic hot melt glue tray forming machine applies hot melt adhesive or glue to specific areas of the tray, such as the flaps or seams. The hot melt glue is heated to a precise temperature to ensure proper adhesion. This process creates a strong bond that holds the tray together securely.
Specification
| Model | MTW-ZH25 |
| Conveyor speed | 1200-1500 Pcs/H |
| Carton size | L250-350*W200-300*H60-100 mm |
| Power supply | 220/380V,50Hz,6Kw |
| Air pressure | 600NL/min,0.6-0.8Mpa |
| Discharge table height | 700mm |
| Machine dimensions | L2000*W1800*H1800mm |
| Machine weight | 800-1200kg |
Our Exhibition
Shipping method
FAQ
Q1: Are you a factory ortrading company?
A1: We are factory with110vorkers in total.
Q2:What is your hot items?
A2: Our main products are tray erectors,tray former machine,bag inserter machine,bag folder
machine,bag sealer machine,carton erector,carton sealer
Q3:How about the Shipping Method?
A3: Our packing machines are mainly shipped by sea, or land transportation if it is next to
China ,and air shipments are all workable if the customer can afford the air freight. In one
words, we could do any shipments you wanted.
Q4:How about the delivery date?
A4: In General, the delivery date will be 35-65 working days for normal buy quantity. But if
bigger
order, please check with us further.
Q5:How about the label and the logo?
A5: Customize label and logo is workable.
Q6: How about the MOQ?
A6: 1set of machine.
Q7: What is the warranty?
A7:All our goods are 1 years warranty ,except the consuming parts.
